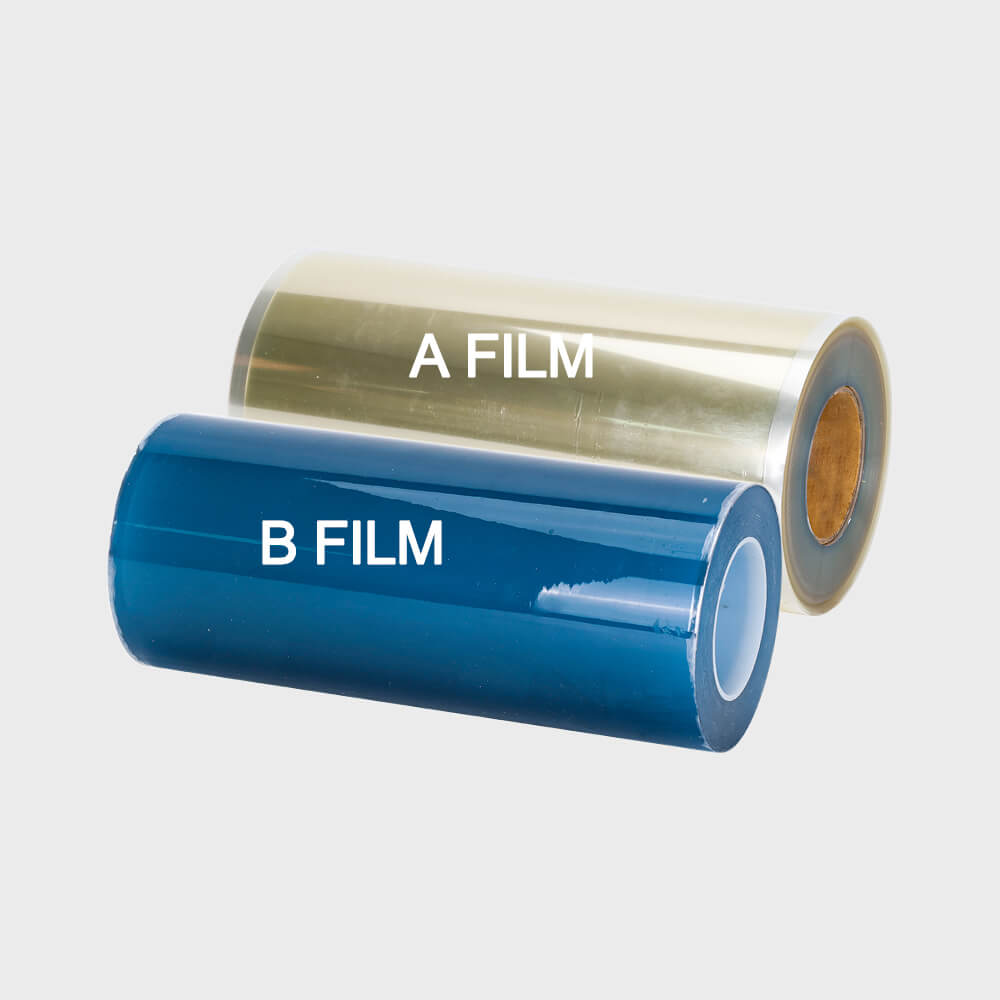

30CM*100M Roll UV DTF AB FILM
Pruduct Name: UV DTF AB FILM
Pruduct Size: 30CM*100M(11.8″*328″)
Material: PET
Suitable Printer：All UV DTF Printers with Vacuum Bed
Features: It can be applied to various materials, such as glass, ceramics, metal, plastic, and wood.
The pattern has strong adhesion, is waterproof and scratch-resistant, and is not easy to peel or warp.
The material is non-toxic and environmentally friendly, suitable for daily use.
Features Of Our UV DTF Film
- 🏭 Factory Direct: Stable supply with strict QC, straight from our UV DTF film manufacturing plant.
- 🌈 Vivid Color Transfer: Excellent ink absorption for sharp, vibrant, high-definition prints.
- 🧲 Strong Adhesion: Firmly sticks to glass, metal, acrylic & more—no peeling or cracking.
- 💨 Fast Drying, Easy Peel: Quick-dry coating with smooth cold peel after lamination.
- 🎯 Fine Detail Support: Captures small text and gradients with high precision.
- 📏 Size Options & OEM: Available in 30cm, 60cm, and custom sizes with OEM/ODM support.
- 🌍 Global Shipping: Export-ready with MSDS, RoHS, REACH & full documentation.
UV DTF Film Specifications
| MODEL | SIZE | CORE | THICKNESS | PACKAGE |
|---|---|---|---|---|
| W-300 | 30cm * 100m | 2inch/3inch | 75μm-100μm | 4rolls/carton |
| W-600 | 60cm * 100m | 2inch/3inch | 75μm-100μm | 2rolls/carton |
| W-D | Csutomize Size | 2inch/3inch | 75μm-100μm | Customize Packge |
| Type: | Cold and hot peel-off application | |||
| Application: | Glass Metal Wood Ceramic Leather Paperboard |
|||
UV DTF Film Performance Test
| Test Category | Test Description | Test Method | Test Outcome | Test Data/Values | Notes |
|---|---|---|---|---|---|
| Film Coating Uniformity | Evaluates coating smoothness and consistency | Visual inspection + Coating thickness test | Even coating, no visible defects | Thickness deviation ≤ ±3μm | Ensures stable ink absorption and transfer |
| Ink Absorption | Tests ink adhesion and drying performance | UV ink printing test + Drying time measurement | Quick drying, firm adhesion | Drying time ≤ 8 seconds | Suitable for high-speed UV DTF printing |
| Transfer Performance | Assesses transfer rate from A film to B film | Cold peel test under standard pressure | Clean transfer, no residue | Transfer success rate ≥ 98% | Ensures smooth pattern release during transfer |
| Adhesion to Substrates | Tests bonding strength on different materials (glass, metal, etc.) | Cross-cut test + Tape pull-off | Strong adhesion, no peeling | Grade 5B (ASTM D3359) | Suitable for long-term decoration on hard surfaces |
| Scratch Resistance | Evaluates surface durability after transfer | Hardness pencil test (ASTM D3363) | No visible scratch or damage | 3H–4H hardness level | Enhances durability for outdoor/handling-intensive uses |
| Color Retention | Tests color vibrancy after exposure to light and wear | UV exposure + abrasion test | No fading or discoloration | ΔE ≤ 1.0 after 72hr UV exposure | Maintains print clarity and vibrancy over time |
UV DTF Film Applications
GET QUOTE
Share more information anytime, anywhere
FAQS
What surfaces can UV DTF film be applied to?
UV DTF film works on glass, metal, acrylic, ceramic, wood, leather, and plastic—basically any flat or slightly curved hard surface.
What’s the difference between UV DTF and regular DTF film?
UV DTF film is for non-fabric surfaces, using UV-curable ink, not textile pigment ink. It doesn’t need heat pressing—just print, laminate, peel, and stick.
How long does the print last on different materials?
With proper application, UV DTF prints can last 2–3 years indoors and 1–2 years outdoors, depending on surface and exposure.
Is Winnerjet’s UV DTF film compatible with all printers?
It’s compatible with Epson-based UV printers, including models like L1800, XP600, i3200, DX5, DX7, and small-format A3/A4 UV printers.
Can I order custom film sizes or request OEM packaging?
Yes. We support OEM/ODM orders, custom sizes (width & length), and private label packaging to match your business needs.
