In the digital printing industry—ranging from DTG (Direct-to-Garment) and DTF (Direct-to-Film) to industrial-grade UV flatbed printing—precision is the thin line between high-quality output and costly mechanical failure. Among the countless components that keep a printer running, one specific category has become a focal point for global procurement: T-shaped Tooling.
For international inkjet printer suppliers and maintenance engineers, sourcing reliable “China T-shaped tooling” is about more than just cost savings; it is about accessing a sophisticated supply chain with 20 years of expertise in perfecting the “circulatory system” of digital inkjet technology.
1. The Two Core Categories of T-shaped Tooling
Before diving into the sourcing landscape, we must define what “T-shaped tooling” means in the context of inkjet hardware. This term generally refers to two critical components:

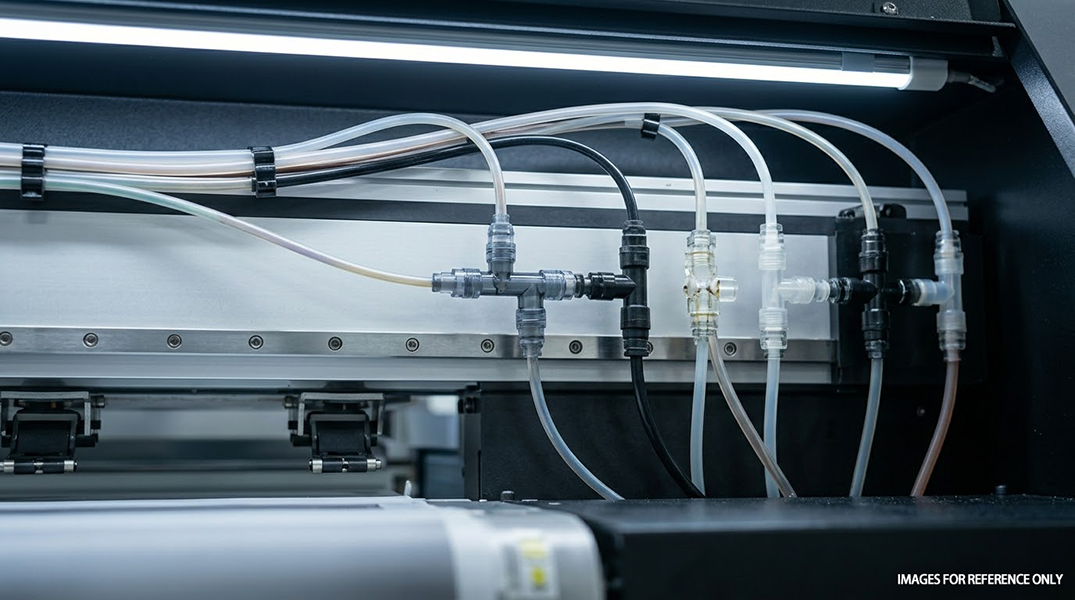

A. T-shaped Ink Connectors
In wide-format or industrial printers, ink must be distributed from the main tanks to multiple printheads or toggled between sub-tanks and cleaning systems.
Function: Facilitates the splitting or merging of ink flow within 4mm or 6mm tubing.
Technical Requirements: Must be manufactured from high-density PP (Polypropylene) or PVDF to ensure resistance to aggressive solvents or UV-curable inks.

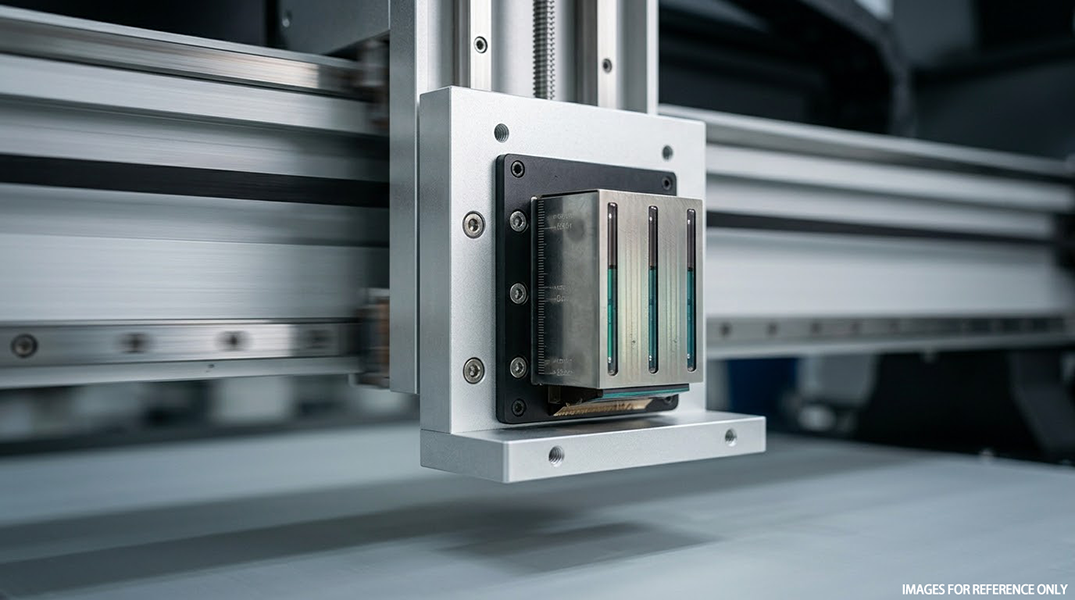

B. T-shaped Printhead Mounting Brackets
Precision alignment is the soul of high-resolution printing. T-shaped brackets or tooling plates are used to lock printheads (such as Epson i3200, Ricoh G5/G6, Konica, etc.) into perfect vertical or horizontal arrays.
Function: Ensures X/Y axis positioning reaches sub-micron accuracy.
Technical Requirements: Typically CNC-machined from aircraft-grade aluminum to prevent thermal expansion and vibration from compromising print quality.
2. Why Global Suppliers Prefer China for T-shaped Tooling?
China has evolved from a “low-cost” hub into the global epicenter for inkjet R&D and component manufacturing.
- Complete Industry Clusters: Concentrated in the Pearl River Delta (Dongguan, Shenzhen) and Yangtze River Delta (Shanghai, Zhejiang), these clusters allow for rapid prototyping and mass production.
- 20 Years of Industry Expertise: Many Chinese suppliers emerged during the first wave of wide-format printing in the early 2000s. This experience has resulted in products built with a deep understanding of ink chemical reactions and mechanical stress.
- Flexible Customization (OEM/ODM): Whether you need a specific T-junction for a DIY DTF setup or a custom-molded bracket for an industrial UV machine, Chinese factories offer unmatched flexibility for small-batch customization.
3. Top 10 Leading T-shaped Tooling & Component Suppliers in China
In China, the supply of T-shaped tooling and ink system parts has formed a highly concentrated industrial cluster. These suppliers specialize not only in standard connectors but also in high-precision Printhead Alignment Brackets. From precision machining in the south to system integration in the east, these suppliers provide sub-micron solutions for Epson, Ricoh, Kyocera, and other major brands.
The advantage of these suppliers lies in their “Agile Manufacturing”—whether you need light-shielding for UV inks or corrosion resistance for textile pigments, these leaders provide tailored support through advanced materials like high-performance PTFE.
Here are the top 10 suppliers categorized by location, technical strength, and specialization:
1. Winnerjet
Location: Humen, Dongguan, Guangdong.
Core Strength: With nearly 20 years of experience (est. 2008), they are a premier “one-stop” inkjet solution provider. Their strength lies in a robust R&D background, providing precise T-junction solutions for complex ink pressure balancing.
Specialization: High-compatibility cartridges, premium inks (DTG/DTF/UV), and critical ink-road structural parts.
2. Vision Tech
Location: Guangzhou, Guangdong.
Core Strength: A veteran distributor of wide-format parts with an immense inventory. Known for having the most comprehensive range of T-shaped check valves and splitters.
Specialization: Wide-format spares, industrial T-valves, pump tubing, and filters.
3. Ocbestjet
Location: Chang’an, Dongguan, Guangdong.
Core Strength: Deep roots in international trade with ISO certification. Their T-shaped connectors feature extremely tight tolerances, making them a top choice for high-end overseas markets.
Specialization: Compatible consumables, ink chips, and precision plastic molds.
4. By-Power
Location: Shenzhen, Guangdong.
Core Strength: Specialists in the UV printing niche. Because UV ink requires strict light-shielding, their opaque black T-tooling leads the industry in UV resistance and chemical inertness.
Specialization: UV ink system components and specialized light-shielding T-connectors.
5. Fullcolor
Location: Dongguan, Guangdong.
Core Strength: Focused on color management and fluid stability. Their CNC-machined T-brackets ensure perfect physical verticality for multi-head arrays.
Specialization: CISS parts, printhead alignment tooling, and sublimation inks.
6. Wit-Color
Location: Shanghai (HQ) and Jiangsu.
Core Strength: A pioneer in industrial-grade printing with a massive global install base. Their T-shaped OEM parts are built for high-pressure, 24/7 production environments.
Specialization: Industrial UV/Solvent printers and heavy-duty ink delivery components.
7. InkTeco
Location: Guangzhou, Guangdong.
Core Strength: Expertise in high-end system integration for digital textile printing. Their T-shaped fluid control modules are designed for high-accuracy industrial output.
Specialization: Digital textile solutions and precision interconnects.
8. Imatec Digital
Location: Lishui, Zhejiang.
Core Strength: Strong focus on the synergy between wide-format media and ink systems. Their T-split systems effectively suppress ink sedimentation in large-scale delivery systems.
Specialization: Wide-format media and high-capacity T-shaped ink components.
9. Realcolor
Location: Shenzhen, Guangdong.
Core Strength: Specialists in desktop and mid-range printer modifications. Their T-joints and brackets are popular in the DIY and small studio markets due to cost-effectiveness.
Specialization: CISS, chips, and small plastic ink-road parts.
10. Signstar
Location: Shanghai.
Core Strength: Over 20 years in the signage equipment industry. They offer specialized T-shaped printhead adjustment kits to solve physical alignment challenges.
Specialization: Digital printing equipment and precision alignment brackets.
4. How to Purchase Chinese T-shaped Tooling?
For global suppliers and technicians, there are three primary ways to procure these professional parts. Choose the one that best fits your volume and customization needs:
A. Direct via Official Websites (Recommended for Technical Support)
For manufacturers like Winnerjet with 20 years of expertise, contacting them directly through winnerjet.com is the most reliable path.
Pros: Avoid middleman markups, get direct technical support (material certs, pressure data), and access OEM customization.
Action: Visit the site and use the “Inquiry” or “WhatsApp” buttons. These factories typically support PayPal, T/T, and express shipping via DHL/FedEx.
B. Global B2B Platforms (Best for Price Comparison)
If you need to compare multiple brands, these platforms are your go-to:
https://www.google.com/search?q=Alibaba.com: Search for T-shape ink connector or Inkjet printer tooling.
Made-in-China.com: Often features more industrial-oriented suppliers; ideal for high-precision CNC brackets.
AliExpress: Best for urgent, small-quantity repairs (1-2 pieces) via retail shops like Realcolor.
C. Regional Agents & International Trade Shows (Best for Bulk/Local Service)
Regional Distributors: Many brands (like Wit-Color) have agents in SE Asia, Europe, and South America for faster local delivery.
Trade Shows (FESPA / APPPEXPO): 2026 FESPA in Barcelona is a prime opportunity to sign procurement deals on-site, often with exclusive bulk discounts.

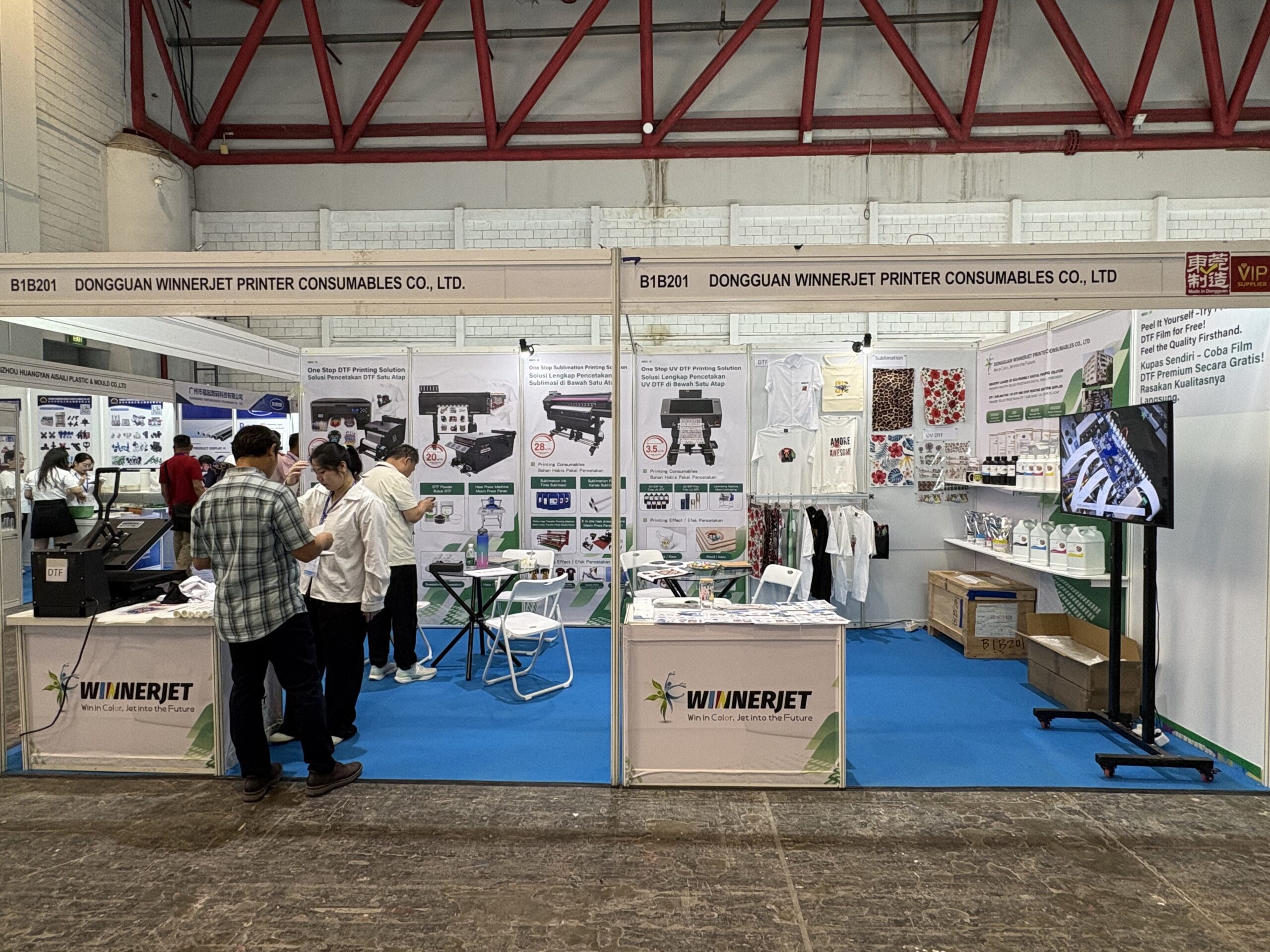

In 2025, the Winnerjet team joined the Global Printing & Packaging Expo Jakarta 2025 in Jakarta, where we connected with distributors and printing businesses across Southeast Asia.
5. The 2-Minute Quality Screen: How to Vet Suppliers
In this industry, cheap parts often lead to expensive downtime. Use these five metrics to “health check” a supplier before ordering:
- Test the Material: Chemical Resistance & Opacity
The Standard: Demand PVDF or Virgin PP; reject recycled plastics.
Pro Tip: Ask the supplier for a photo of the part with a high-intensity flashlight behind it. A quality UV-grade T-connector must be 100% opaque to prevent ink from curing inside the line.
- Verify Precision: Let the Data Speak
The Standard: Printhead brackets must maintain a physical tolerance of $±0.01mm$.
Pro Tip: Reject verbal promises. Demand a QC Inspection Report for that specific batch. Precision errors lead to horizontal banding.
- Experience Equals Stability
The Standard: Prioritize veterans with 15-20 years of experience (e.g., Winnerjet).
The Reason: Only manufacturers who have evolved from DX5 to I3200 heads truly understand the long-term corrosive effects of various ink chemistries on seals and joints.
- Pressure Test: Smooth Walls & Fatigue Resistance
The Standard: Must withstand $5$ Bar of sustained pressure without leaks.
The Detail: Ensure the inner walls are burr-free. Smooth interiors reduce turbulence and air bubbles—crucial for White Ink Circulation Systems.
- Fit & Function: Sample Testing
The Standard: Check the “bite” between the connector and tubing ($3mm/4mm/6mm$).
Pro Tip: Request samples for a test fit. A high-quality joint should feel “secure and tight”—industrial grade enough that extra zip-ties aren’t even necessary.
6. Conclusion: A Stable Supply Chain Starts with Professional Partners
In digital printing, choosing China T-shaped tooling for inkjet printer suppliers is about more than just a part number; it is about choosing a partner who understands fluid dynamics and mechanical precision.
With nearly 20 years of industry expertise, Winnerjet has set the quality benchmark for global inkjet equipment. We understand that downtime costs you money, which is why we provide a complete supply chain guarantee:
- One-Stop OEM Customization: From specialized materials to high-precision CNC brackets, we convert your blueprints into finished parts quickly.
- Low MOQ: We offer flexible minimum order quantities for R&D phases or small service providers.
- 48-Hour Global Shipping: Leveraging Guangdong’s logistics hubs, we maintain deep stock levels to ensure your production line never stops.
Request your Free Sample: Get a PVDF corrosion-resistant sample kit for real-world testing today.
