Just get your new DTF printer? Excited to start printing custom shirts or bags?
This guide will walk you through everything you need to set up your DTF printer—from unboxing and installing the ink to doing your first test print. Even if you’ve never used a DTF machine before, you’ll find this easy to follow.
Watch the Full Workflow: From RIP Setup to Heat Press
Watch the complete workflow (entry-level): From RIP setup to heat press transfer
Want a visual overview of the process? Watch the full demonstration video below, covering RIP software layout (nesting), white ink under-base printing, powder curing, and the heat press transfer onto a cotton T-shirt.
⏱️ Key Video Timestamps:
- [01:10] Nesting designs in software to maximize film usage
- [01:54] Setting RIP software to 6-pass HD print mode
- [06:24] Laying down the solid white ink underbase layer
- [09:26] Proper curing & drying to avoid ink smudging
- [22:41] Heat press settings: 160°C for 15–20 seconds (Medium Pressure)
- [22:58] Peeling the PET film cleanly without residue
🧰 What You’ll Need Before You Start
Make sure you have all the right tools and supplies:
✅ DTF Printing Essentials:
- A DTF printer

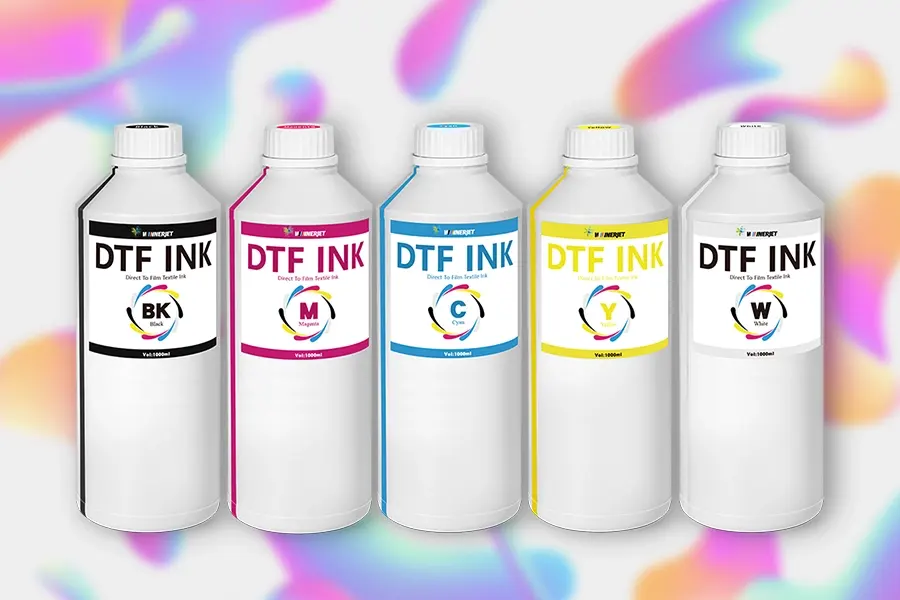

- DTF ink (CMYK + White)
- DTF transfer film (PET film)
- DTF powder (for sticking the design to the fabric)
- RIP software (used to prepare designs for printing)
- A heat press or curing oven
- A computer (Windows is recommended)
- Cleaning tools (gloves, syringes, cleaning solution)
💡 Winnerjet Tip: Our DTF printer kits include compatible ink, film, and software. You can get started faster with less trial and error.
🔧 Step-by-Step DTF Printer Setup Guide
Step 1: Unbox and Check Your Printer
- Remove all packaging materials.
- Place your printer on a flat, stable surface.
- Unlock the printhead if it’s secured for shipping.
Step 2: Add the Ink
- Carefully pour ink into the tanks or cartridges (CMYK and white).
- Use syringes or funnels to avoid spilling.
- Please make sure the white ink is filled last, and shake it gently before use.
⚠️ Always wear gloves — DTF ink can stain, and white ink clogs easily if left open.
Step 3: RIP Software & Driver Setup
- Plug directly into a high-speed PC USB port (no USB hubs). Select your printer model in RIP software (AcroRIP, CADlink, or Flexi).
- Set ink channels to match your dampers (e.g.,
Y-M-C-K-W). Enable 100% White Under Any Color with a 1–2 pixel choke to prevent white edge bleed. - Use 720×1440 DPI (6-Pass) for optimal speed and sharpness. Use 1440×1440 DPI (8-Pass) for ultra-fine text.
Avoid setting white ink density to 100%—excess ink traps moisture and causes bubbling. In our daily testing, 60%–70% white density delivers full opacity and dries faster in the oven.
Step 4: Get the Printer Ready
- Run a head cleaning from the control panel or software.
- Do a nozzle check to make sure all colors are printing well.
- If you see missing lines or breaks, clean the printhead again.
🧽 Winnerjet Tip: We recommend cleaning the printhead with a special solution before your first print for better results.
Step 5: Load the DTF Film
- Load the film with the printable (matte) side facing up.
- Make sure it feeds straight — crooked loading causes print issues.
Step 6: Prepare and Print Your Design
- Open your artwork in RIP software.
- Set it to “mirror image,” so it prints correctly.
- Choose white under base and print settings (like 720×1440 resolution).
- Press “Print” and watch your first design come to life!
🔥 After Printing: Powder, Cure & Transfer
Once your print is done:
- Apply DTF powder while the ink is still wet. Cover it evenly.
- Shake off the extra powder.
- Heat it in a curing oven at 110–120°C (230–250°F) for 2–3 minutes.
- Press the design onto your fabric at 150–160°C (300–320°F) for 10–15 seconds.
🧊 Cold peel? Please wait for it to cool before removing the film. Winnerjet’s cold peel film makes it easy and clean.
🧼 Keep Your DTF Printer in Good Shape
- Shake the white ink bottle every day
- Do a nozzle check before printing jobs
- Clean the printhead and ink station once a week
- Use a maintenance solution if your printer sits unused
- Keep your film dry and dust-free
White Ink Not Flowing: Check peristaltic pump, damper airlock, and ensure ink is gently agitated.
Film Slippage / Feeding Jam: Clean rubber feed rollers with isopropyl alcohol; ensure matte-side coating faces printhead.
Oily / Wet Print Edge: Insufficient curing time in oven; powder not completely melted into orange-peel texture.
✅ Summary: Start Smart, Print Better
DTF printing is an exciting way to start or grow your custom printing business. If you follow the steps above, your printer will be ready to create vibrant, long-lasting designs on shirts, bags, and more.
🎯 Want to start printing faster and smoother?
Winnerjet offers:
- Ready-to-run DTF printer kits
- Easy-peel PET film (hot & cold)
- Clog-resistant DTF inks
- Set up help and samples for businesses
We’re happy to help you get started!
❓FAQs – DTF Printer Setup
💻 Do I need special software for DTF printing?
Yes, DTF printers need RIP software to set up the print colors and layers correctly.
🎨 Can I use regular inkjet ink?
No. You must use DTF ink, especially for the white layer, to bond with the fabric.
📏 Why is my design printing off-center?
Check if the film is straight, and make sure the design is centered in the RIP software.
⚠️ What if my white ink clogs?
Clean the printhead and always shake the ink bottle. Winnerjet’s white ink is made to reduce clogging.
🧵 What’s the best starter setup for my shop?
A desktop DTF printer, curing oven, heat press, and quality film + ink are all you need. Ask us — we’ll help you pick the right products.
