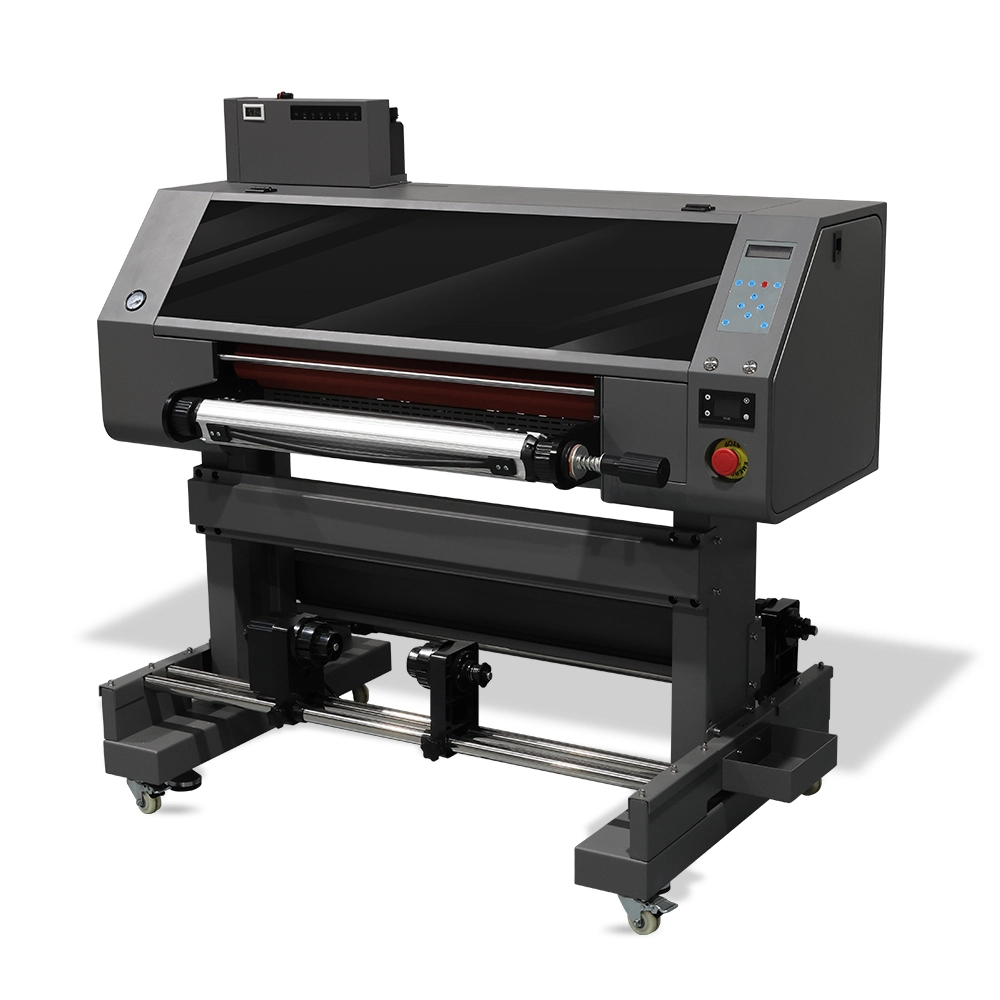

A1 60cm UV DTF Printer with Epson i3200 | Winnerjet
Model: WT700 HD
Printer Type: UV DTF Printer
Printhead: 1*Epson i3200
Maximum Printing Width: 700 mm
Ink Type: UV Printing Ink
Ink Colors: C / M / Y / K / W / V
Media: AB Film
Curing: UV LED Lamp
Roll Function: Automatic Printing & Laminating
Cleaning: Automatic
RIP Software: RIN
Language: Chinese / English
Top Features:
Fast curing, Suitable for UV DTF workflow, Supports printed film production.
Reduce manual maintenance tasks and enhance long-term operational convenience.
Our UV DTF Printer Selling Point
700mm Width → Epson i3200 → Print & Laminate

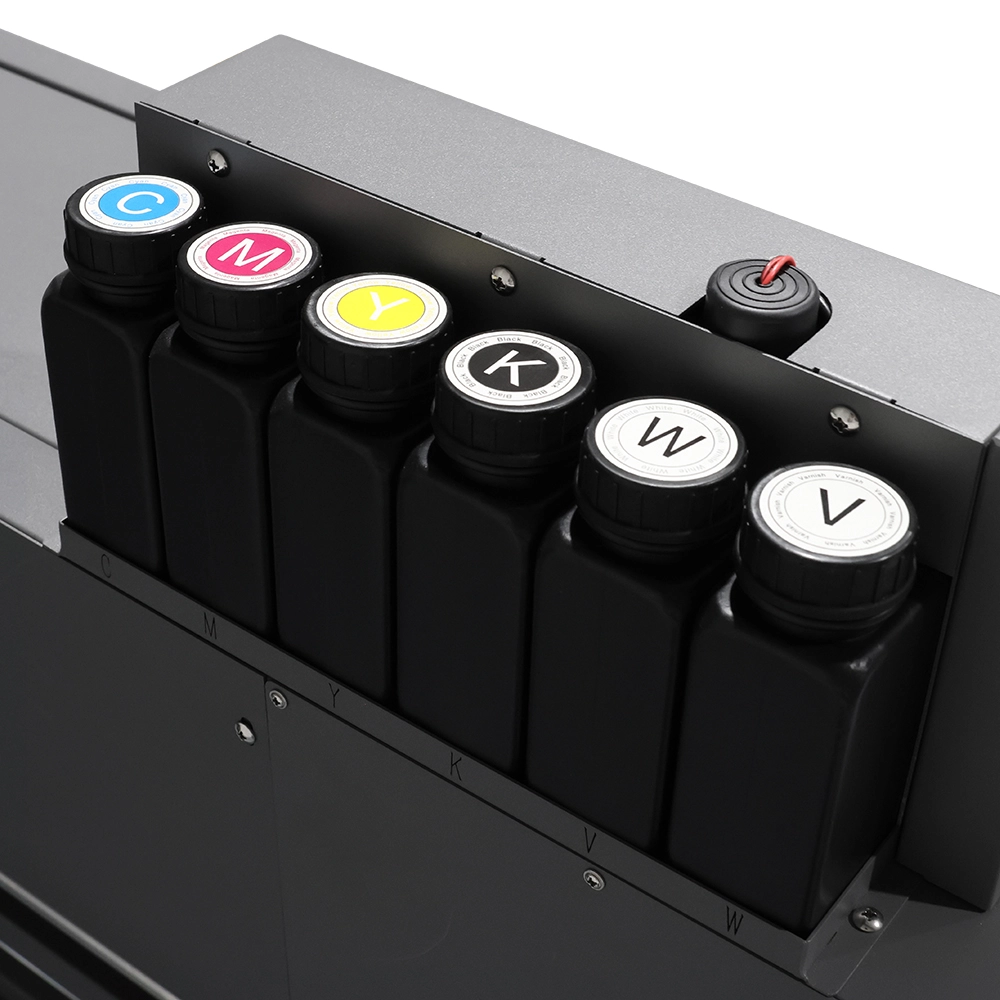

CMYK + White + Varnish
Combine vibrant color, white ink and varnish effects for premium transfer designs.

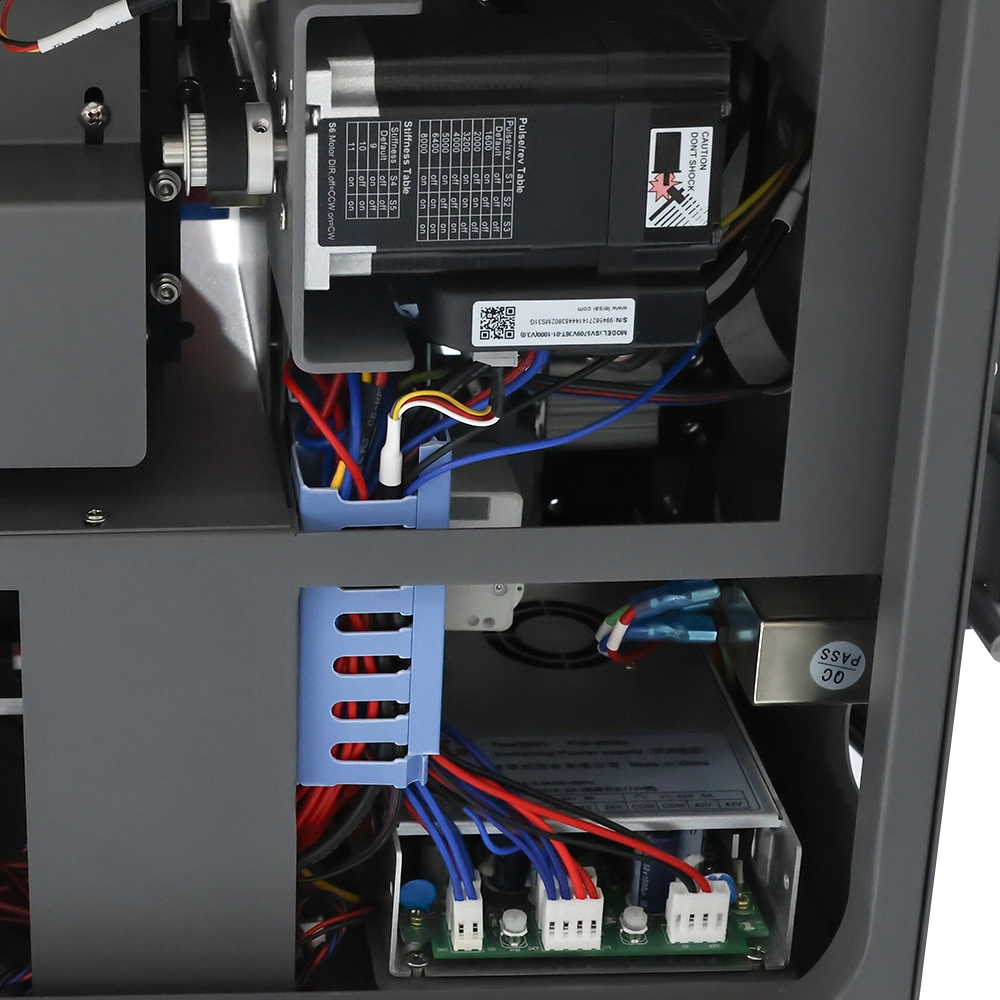

Automatic Ink Maintenance
Reduce routine manual work with automatic ink extraction, cleaning and scraping.
UV LED Curing
Cure printed UV ink in-line with the integrated UV LED curing system.
Complete Professional Functions

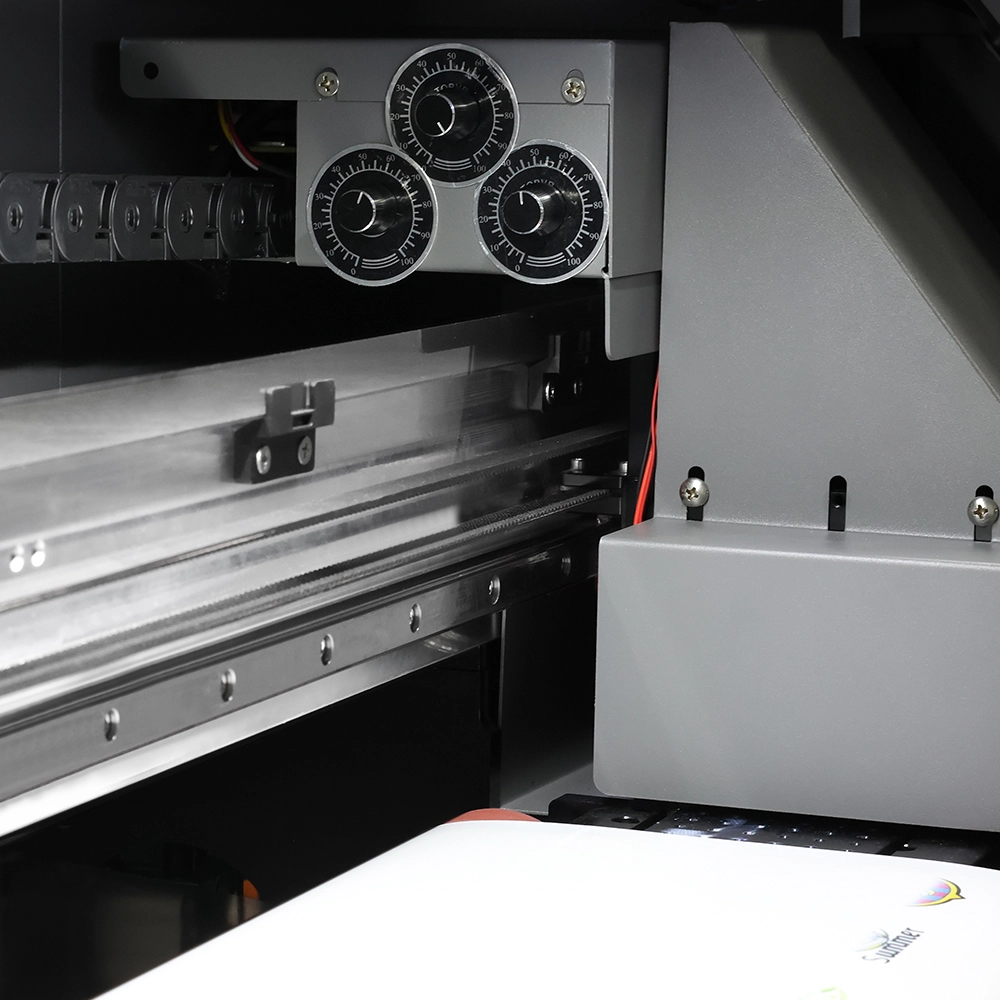

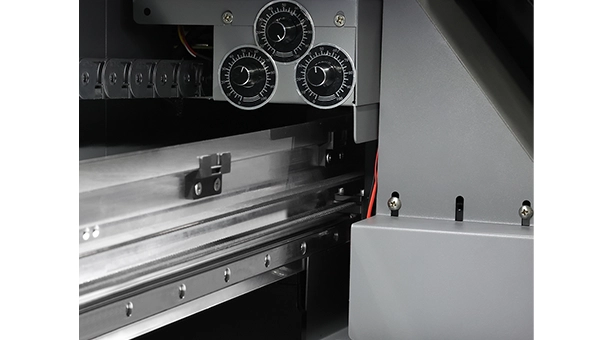

High-Precision I3200 Print Head
Equipped with a single I3200 printhead, it provides stable and high-definition output. It strikes a balance between printing speed and detail, making it ideal for small and medium-sized businesses seeking quality and cost-effectiveness.
Ink Recycling System
Adopt a modified ink special continuous supply system, which can store more ink at one time, save the time of replacing the ink, and improve work efficiency. At the same time, non-stop printing can prevent ink from settling and printing better.

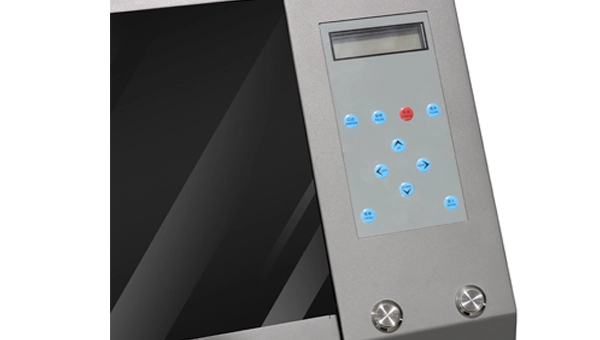

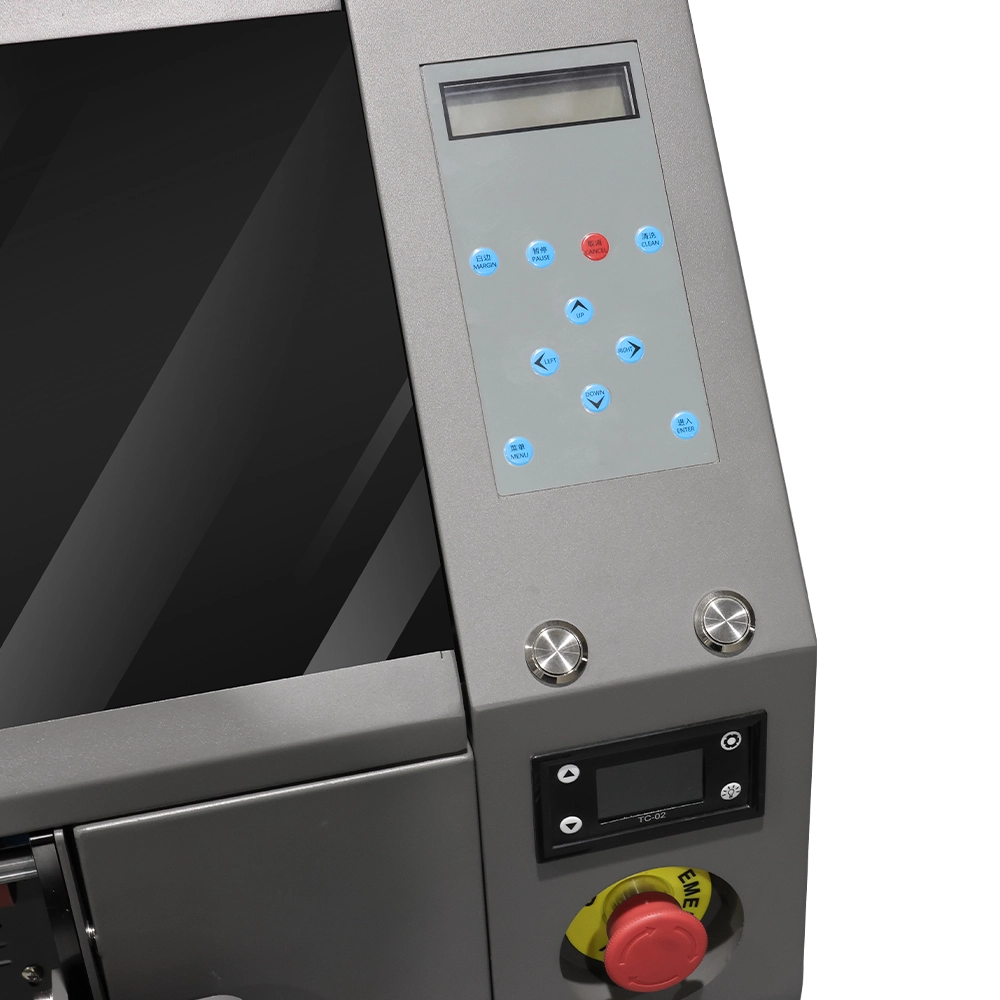

Easy To Operate
The UV DTF Printer features a simple, versatile interface and a user-friendly guide, allowing both professionals and beginners to get started quickly and operate with ease.
Automatic Powder Shaker
Equipped with precise size indicators and film stabilization devices, the new bracket ensures accurate pattern positioning, prevents transfer film deviation, and guarantees a smooth and aligned printing process from start to finish.

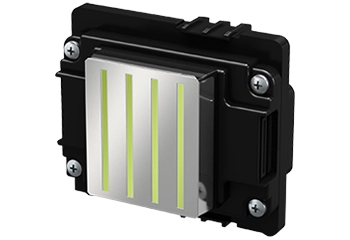

Epson I3200 Print Head
Optional 2/4/8 Epson I3200 printheads with high printing accuracy, high efficiency and high resolution ensure high color saturation and clear details of the prints.
| Model | I3200-A2 |
|---|---|
| Ink Types | Water based ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
Product Specifications
| Basic Information | |
| Model | WT700 HD |
|---|---|
| Printer Type | 24" / 60cm-Class UV DTF Printer |
| Printhead | Epson i3200 (8) HD × 1 |
| Board | Single Head Hoson Board, Siphon System 2.75 |
| Printing Specifications | |
| Printing Accuracy / Resolution |
720 × 2400 720 × 1800 720 × 1200 |
| Maximum Printing Width | 700mm |
| Ink Type | UV Printing Ink |
| Ink Colors | C / M / Y / K / W / V |
| Media Type | AB Film, Gold Stamping Crystal Label |
| Ink & Maintenance System | |
| Ink Cleaning System |
Automatic ink extraction, automatic cleaning, and automatic ink scraping |
| Functional Features | |
| Functional Projects |
Cylinder lifting, automatic paper feeding, paper shortage sensing |
| Roll-Up Function | Fully automatic printing and laminating integrated |
| Heating Function | Heating Tube Heating |
| Film Coating Temperature | 80°C |
| Curing & Cooling | |
| Curing System | UV LED Lamp Curing |
| UV Lamp Cooling System | Air-Cooling |
| Operating Environment | |
| Temperature / Humidity |
Temperature: 20–28°C Relative Humidity: 65%–75% |
| Air Compressor | 8L or above |
| Software & Computer Configuration | |
| Language | Chinese / English |
| Operating System |
Windows 7 and above, 64-bit; CPU i5 processor with 8–16GB memory or above |
| RIP Software | RIN |
| Computer Configuration |
C drive solid-state drive with 120GB or more; 1TB or more additional disk; Gigabit Ethernet port |
| Electrical Specifications | |
| Electrical Parameters | AC220V / 110V 60Hz 1.2KW |
| Machine Electricity Consumption | 2.5 square |
| Dimensions & Weight | |
| Machine Size |
1270 × 556 × 1100mm (excluding tripod: 478mm) |
| Packaging Size | L1440 × W760 × H1330mm |
Explore Our UV DTF Printer Workflow

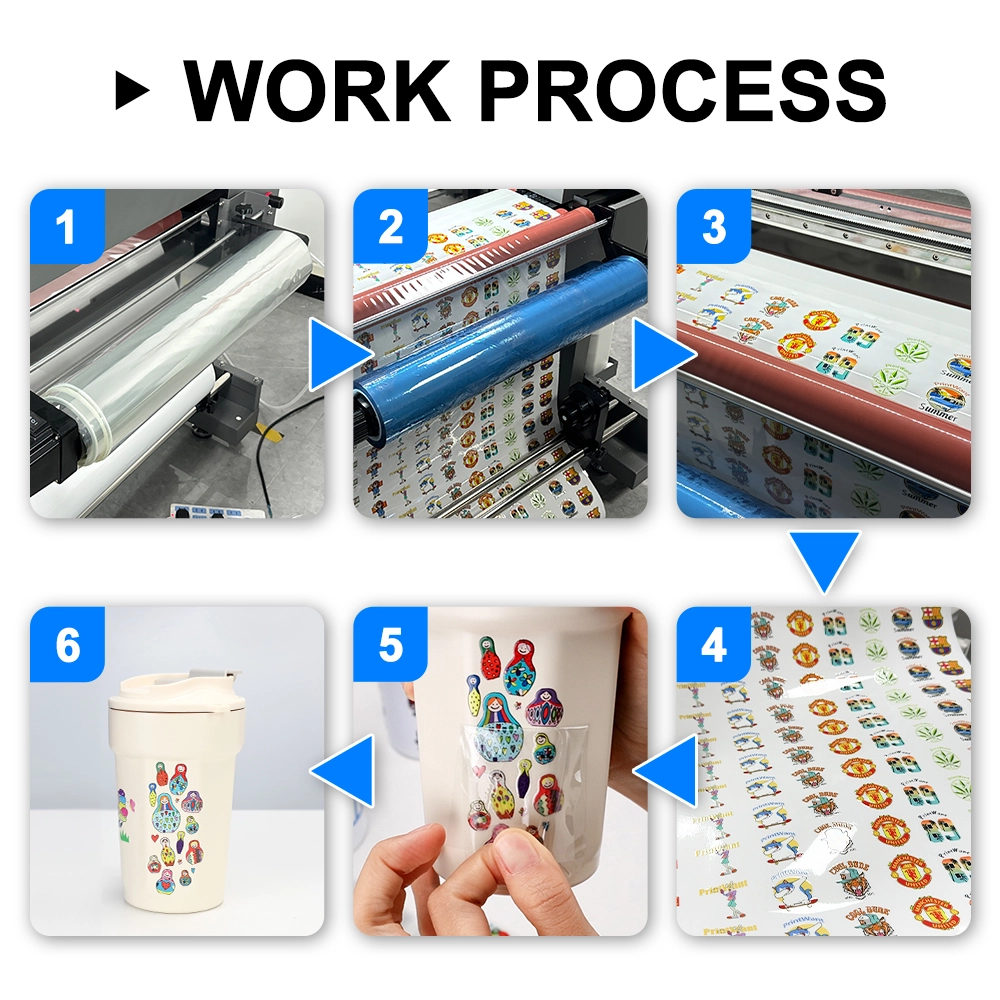

UV DTF Printing Step-by-Step Guide
Place the roll film – Print the pattern on the A film – UV cure the pattern – Transfer the pattern – Complete the design
UV DTF Printing Applications
Winnerjet UV DTF Printer Exclusive Offers
Buy a Winnerjet UV DTF printer online and get a free premium UV DTF printing starter kit.
The Starter Consumables Set includes:
- UV DTF Film: 60CM*100M/30CM*100m 1 Roll
- UV DTF Ink: 1000ml*6 (C, M, Y, K, W, V)
- Winnerjet UV DTF Environment Settings
- Winnerjet UV DTF Instructional Video
FAQS - About the 60cm UV DTF Printer
What is the Winnerjet WT700 HD?
The WT700 HD is a 24-inch / 60cm-class UV DTF printer equipped with one Epson i3200 printhead and designed for AB film printing and laminating.
What printhead does the WT700 HD use?
The WT700 HD uses one Epson i3200 printhead.

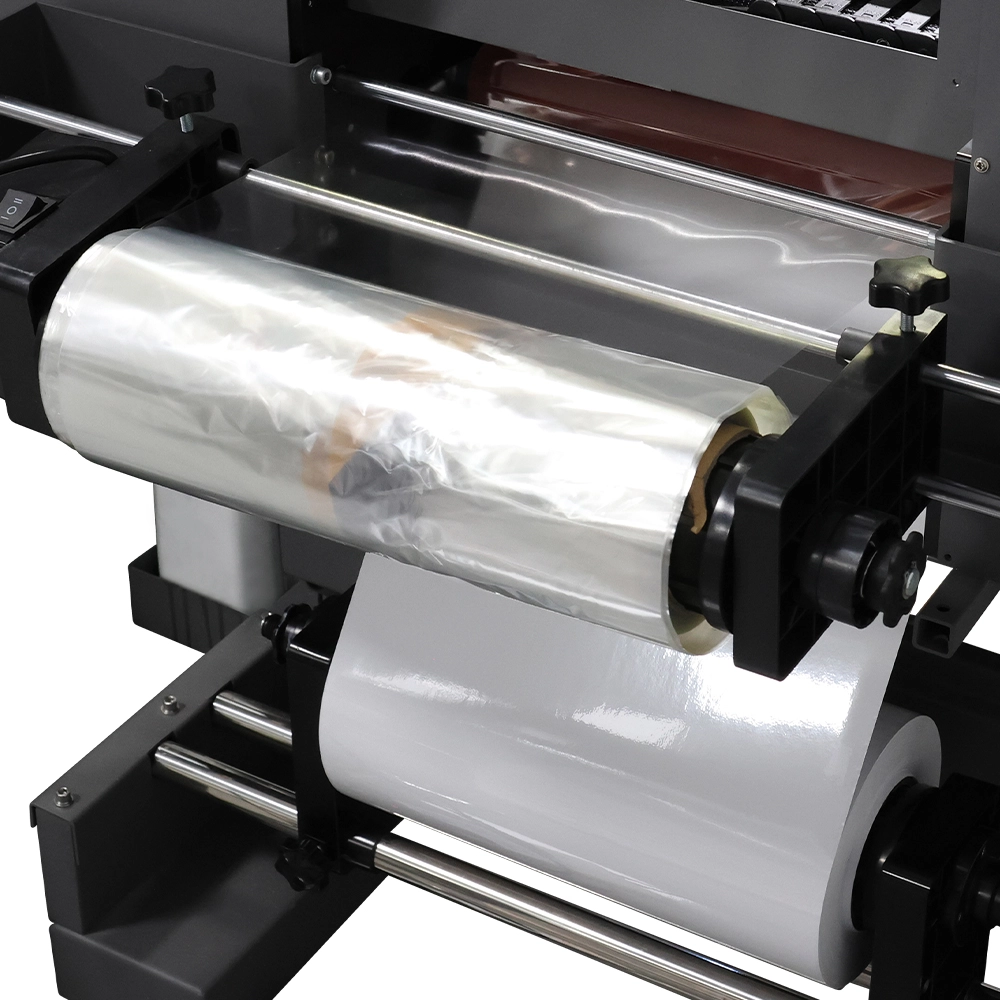

Can the WT700 HD print on AB film?
Yes. AB film is the primary media specified for this UV DTF printer.
Does the printer support automatic cleaning?
Yes. The machine includes automatic ink extraction, cleaning and ink scraping functions.
Does it support automatic laminating?
Yes. The roll-up system integrates automatic printing and laminating.
Can Winnerjet supply UV DTF printers for wholesale?
Yes. Winnerjet can support B2B purchasing requirements such as wholesale, bulk orders and OEM/distributor cooperation.
Start Your UV DTF Printing Business Now
UV DTF Printing One-stop Service
UV DTF Ink
1000ML/Bottle（C M Y K W）

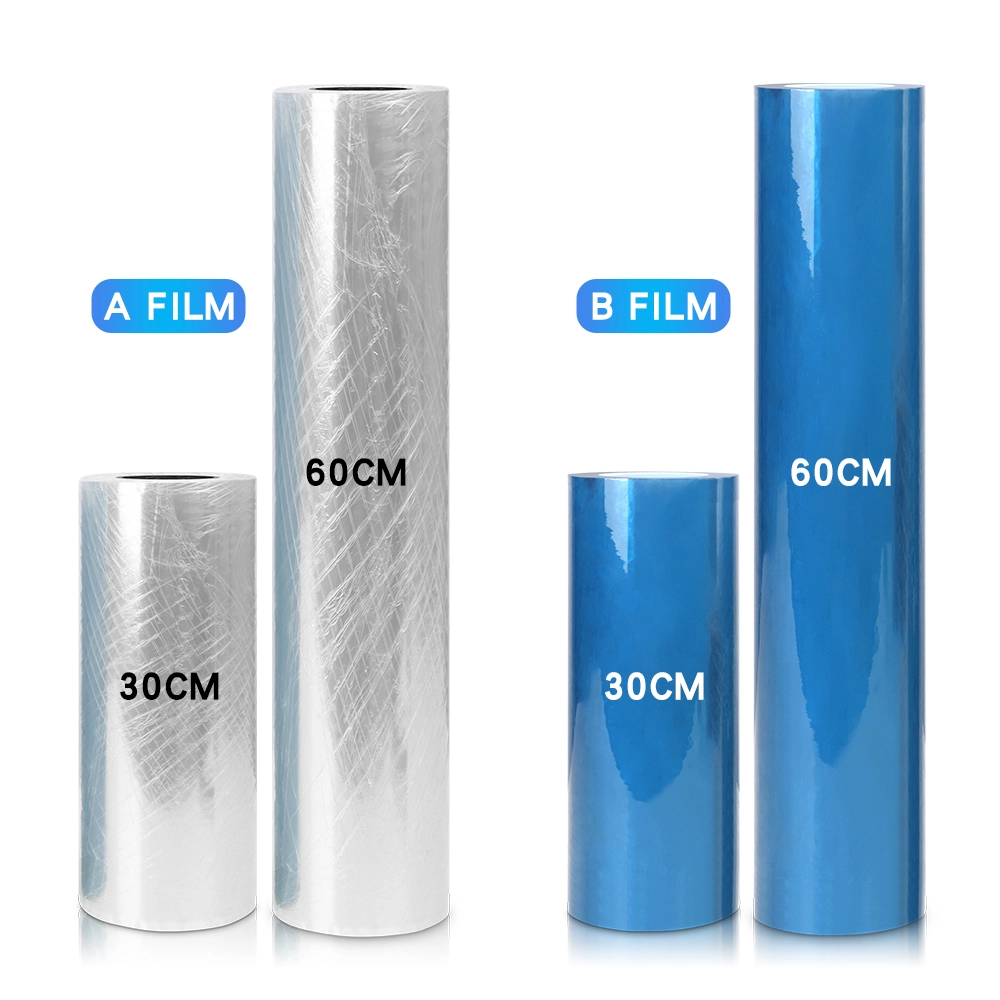

UV DTF Film
30CM/33CM/60CM*100M
UV DTF Printer

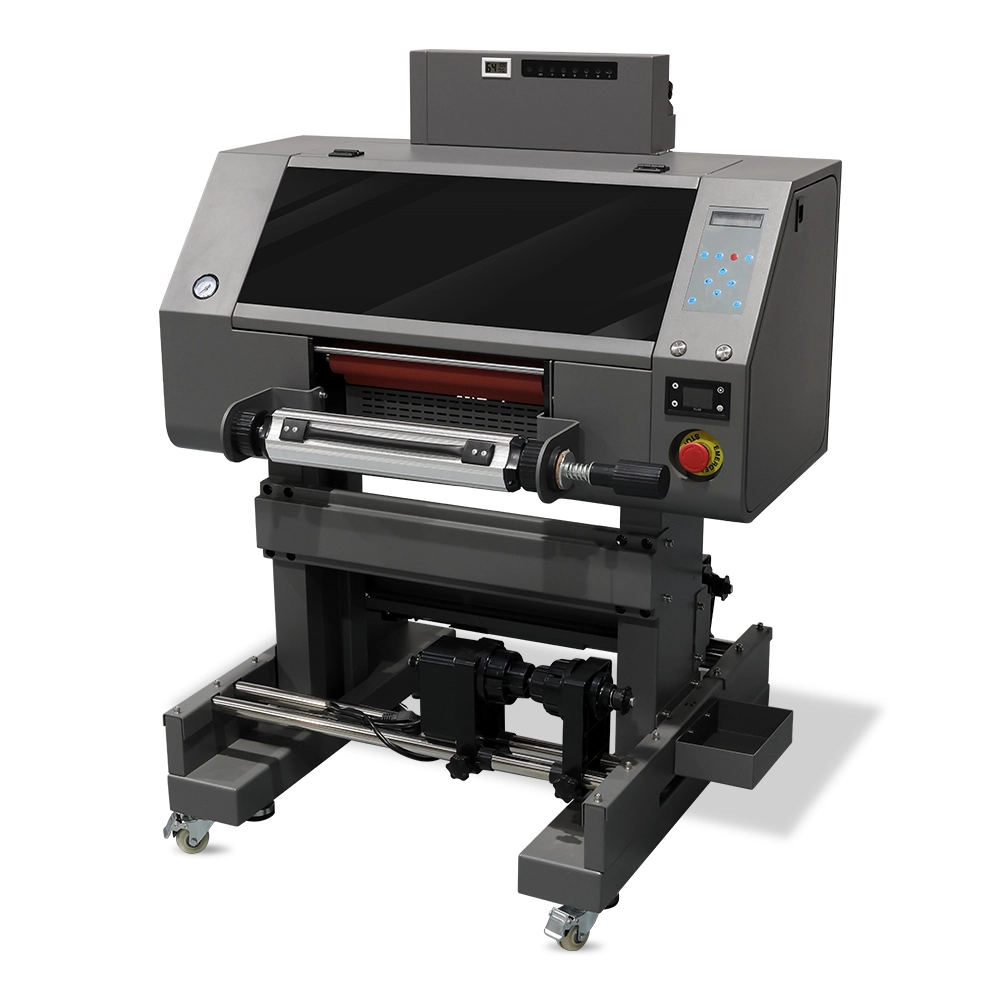

A3 30CM UV DTF Printer
